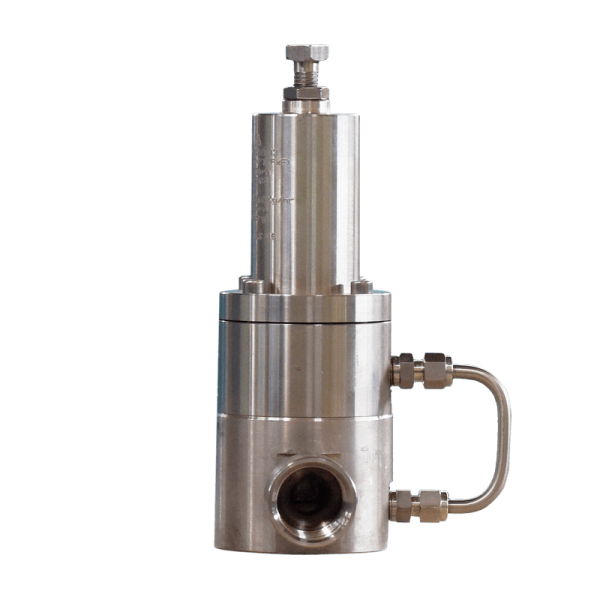

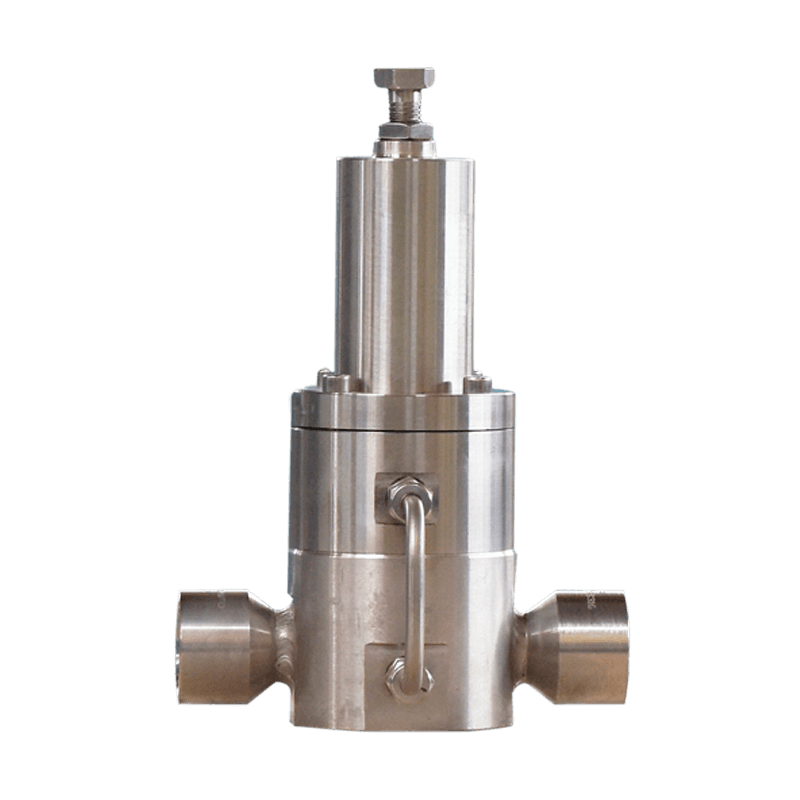

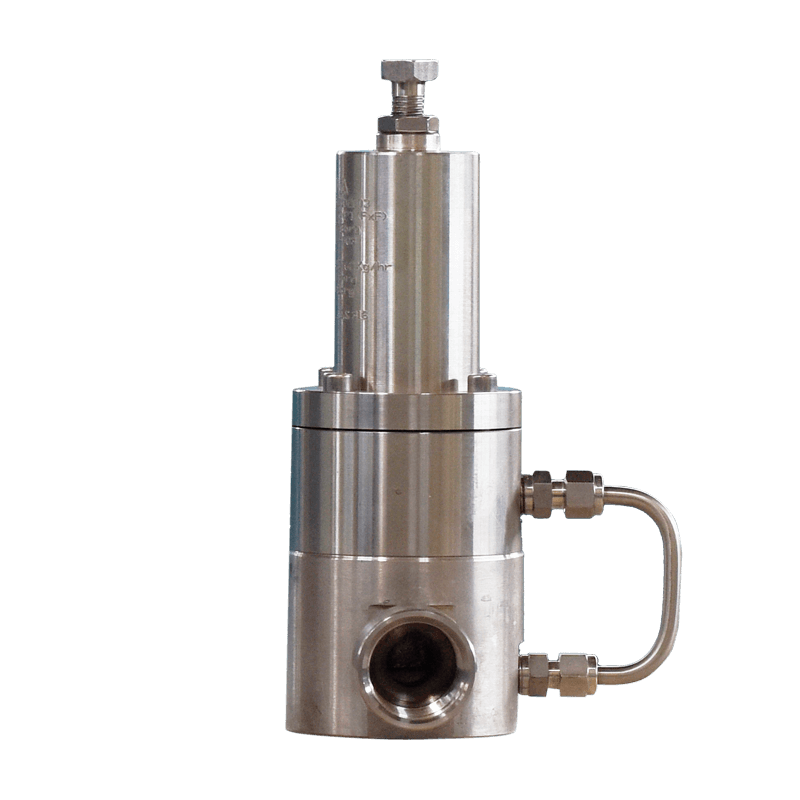

Safety Relief Valve for Very Low Temperature Applications
Cryogenic valve is similar to spring-loaded/compact valve. It is a self-actuated safety relief device which acts with the aid of a spring assembly that is designed to open at a predetermined pressure. The spring-loaded valve includes conventional, balanced-bellows, and balanced-piston types.
They can be used for applications where the operating temperature is very low. For instance, for the handling of liquefied nitrogen, oxygen, etc.
| Type | Cryogenic Safety Relief Valve | Cryogenic Safety Relief Valve |
| Inlet size range | DN15-DN200 | 1/2″-8″ |
| Outlet size range | DN15-DN250 | 1/2″-10″ |
| Connection STD | DIN 1092-1 | ASME B16.5 |
| Inlet flange rating | PN20-PN420 | CL 150-CL2500 |
| Orifice Letter | D-T | D-T |
| Pressure range | Acc. To API 526 | Acc. To API 526 |
